Automatic Snus Can Labelling Machine
Apply labels to the top, base and circumference of round product cans.
- Speed
- 20–200 cans/min
- Label positions
- Top · base · side
ApplicationFor finished round cans that need coordinated lid, base and wraparound labelling as a standalone station or part of a connected line.
WhatsApp · +86 186 8875 0201
sales@torvekapack.com
Product Overview
This labelling system organizes round cans on the conveyor and applies labels to three product surfaces: the top lid, lower face and outer circumference. Servo label dispensing, PLC control, touch-screen operation and photoelectric detection coordinate the application cycle.
Machine Details

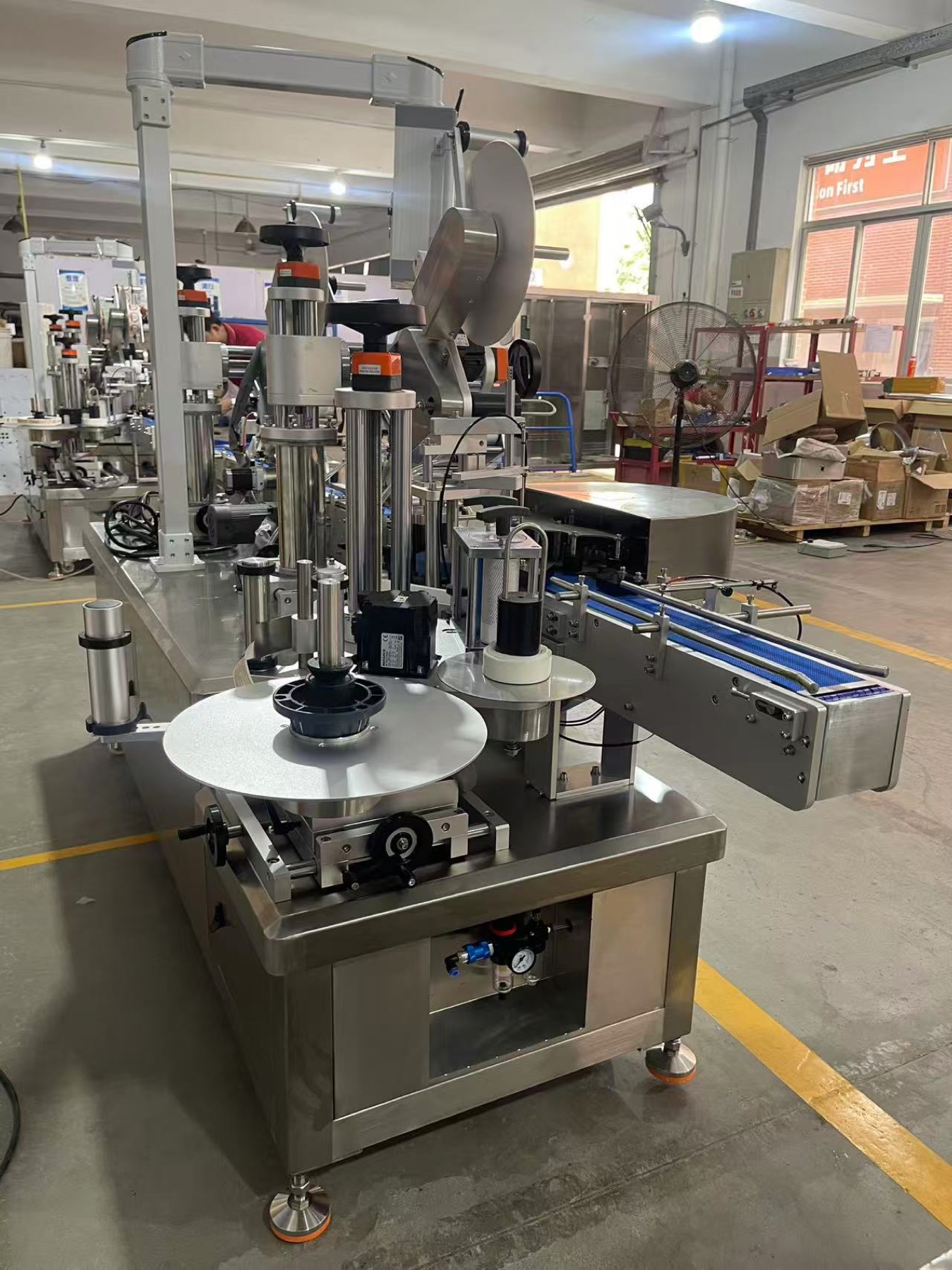

The turntable and guide system organize round cans before the labelling heads.
The reel, guide rollers and peel plate deliver labels to the moving can.
How It Works
- 1
Organize cans
The infeed and turntable arrange round cans before label application.
- 2
Apply top label
A servo-driven head applies the selected label to the lid surface.
- 3
Apply base & side labels
Additional heads label the lower face and circumference.
- 4
Inspect & discharge
Photoelectric detection coordinates label output as cans leave the station.
Technical Specifications
| Labelling positions | Top, bottom and circumference |
|---|---|
| Listed speed | 20–200 cans/min |
| Container diameter | 20–110 mm |
| Label height | 15–135 mm, listed |
| Label length | 20–300 mm |
| Label roll core | 76 mm inner diameter |
| Label roll outer diameter | Up to 370 mm |
| Conveyor height | 850 ±30 mm |
| Conveyor width | 101.6 mm |
| Machine envelope | 2,500 × 1,200 × 1,600 mm |
| Power | AC 220 V · 1.5 kW · 50/60 Hz |
| Listed accuracy | Flat ±0.5 mm · round ±1 mm, excluding packaging-material error |
Published labelling values exclude dimensional variation in the container and label materials. Confirm final operating values with your material and packaging specification.
Configuration & Options
- Confirm the can diameter, label stock, label size and required application surfaces with physical samples.
- The equipment can operate as a standalone unit or connect to upstream lidding and downstream secondary packaging.
- Listed speed and accuracy depend on container stability, label quality and product handling.
