High-Speed Single-Lane Nicotine Pouch Packing Machine
Rotary metering and heat sealing for continuous moist-granule pouch production.
- Speed
- 180–220 pouches/min
- Fill weight
- 0.4–0.6 g
ApplicationFor a repeatable single-pouch format where the filling material and film have been selected and output per lane is the main comparison point.
WhatsApp · +86 186 8875 0201
sales@torvekapack.com
Product Overview
The SK200 route is focused on one pouch specification at a time. A rotary measuring-cup unit doses the material, while the forming section draws heat-sealable non-woven film through filling, back sealing, transverse sealing and cutting. This format is suited to a defined pouch size and a production plan that favours one high-speed lane.
Machine Details

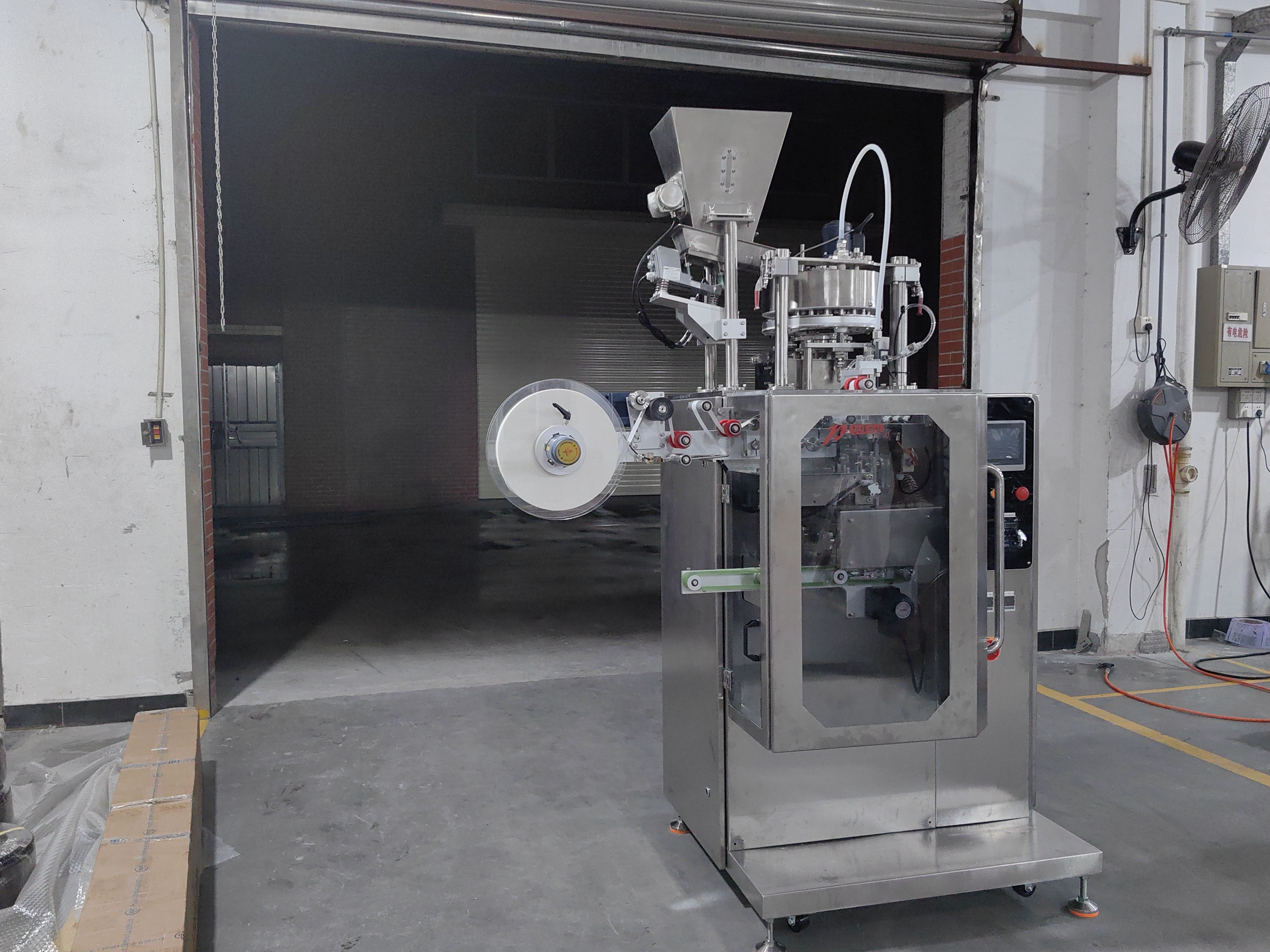

The upper material hopper and circular dosing assembly.
The film roll and red guide rollers before the forming section.
How It Works
- 1
Meter
An adjustable rotary cup doses the moist-granule blend.
- 2
Form & fill
A single strip of non-woven film forms the pouch and receives the measured material.
- 3
Seal & cut
The pouch is back-sealed, transversely sealed and cut.
- 4
Discharge
Finished pouches leave the machine for the next pack stage.
Technical Specifications
| Listed output | 180–220 pouches/min |
|---|---|
| Nominal fill weight | 0.55 g per pouch |
| Rotary metering range | 0.4–0.6 g per pouch |
| Metering accuracy | ±10% (material-dependent) |
| Material moisture | 8–40% for rotary metering |
| Pouch size | 35–50 mm length × 13 mm width |
| Film | 30 mm heat-sealable non-woven film |
| Sealing | 4 mm longitudinal and 8 mm transverse seal |
| Control | PLC with 7-inch touchscreen |
| Power | AC 220 V · 50 Hz · 3 kW |
Speed and dosing accuracy depend on the filling material and running conditions. Confirm final operating values with your material and packaging specification.
Configuration & Options
- The 0.55 g value is the listed nominal setting; 0.4–0.6 g is the rotary metering range.
- The metering unit uses an adjustable cup and servo drive.
- Final film, sealing texture and material suitability should be checked with the actual product sample.
