Entry-Level Nicotine Pouch Packaging Machine
Compact bag-in-bag equipment for trial production and small batches.
- Speed
- Up to 40 pouches/min
- Fill weight
- 0.4–0.7 g
ApplicationFor laboratory trials, launch-stage production and small runs that require an individual outer wrap around each filled inner pouch.
WhatsApp · +86 186 8875 0201
sales@torvekapack.com
Product Overview
This configuration brings two packaging operations into a single, compact production route. The upper section meters and forms the inner nicotine pouch; the finished inner pouch is transferred to the outer-film section for a second wrap and seal. It suits product development where both pouch format and material behaviour are still being refined.
Machine Details

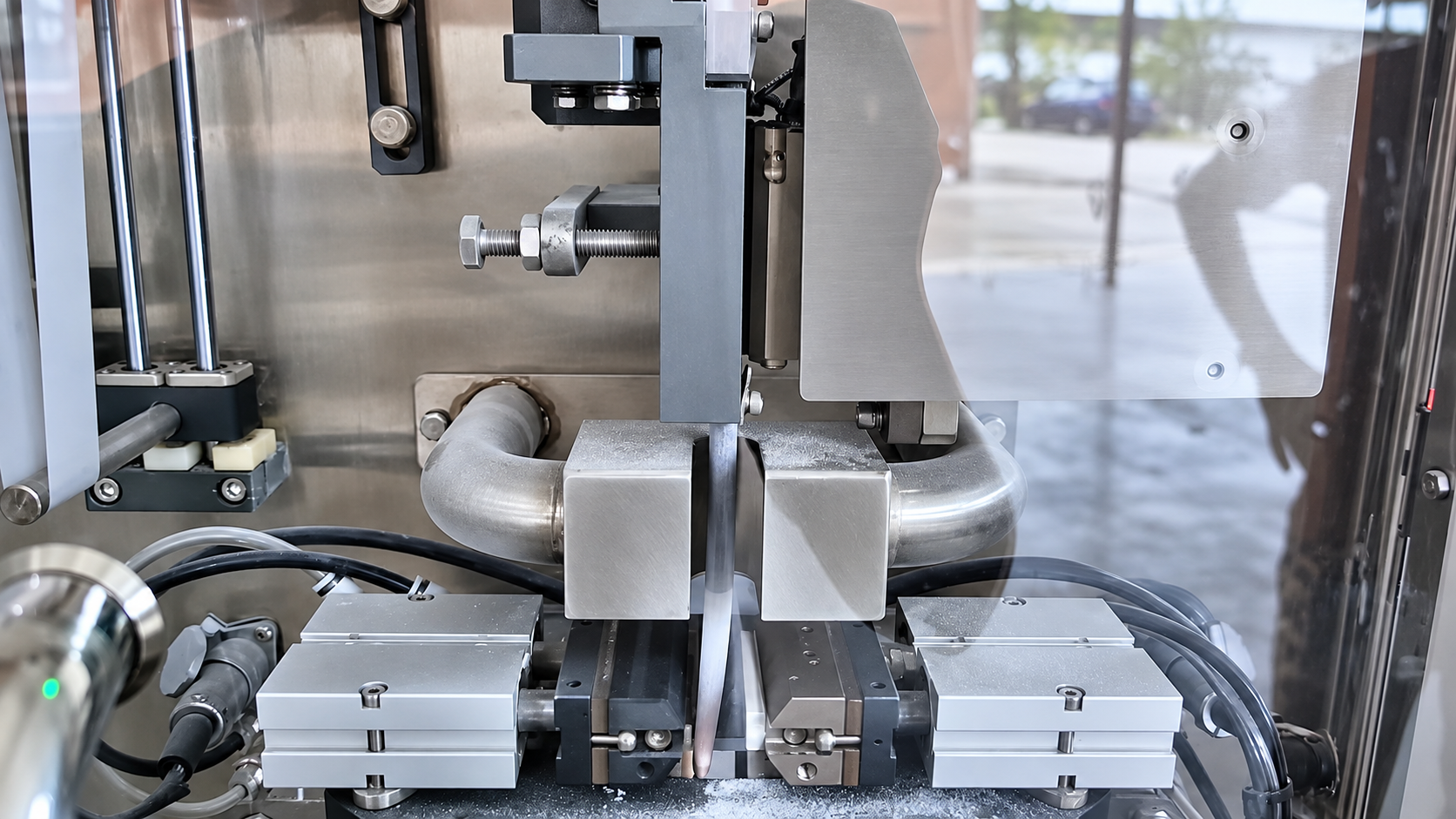

The film path runs between the sealing jaws in the lower packaging section.

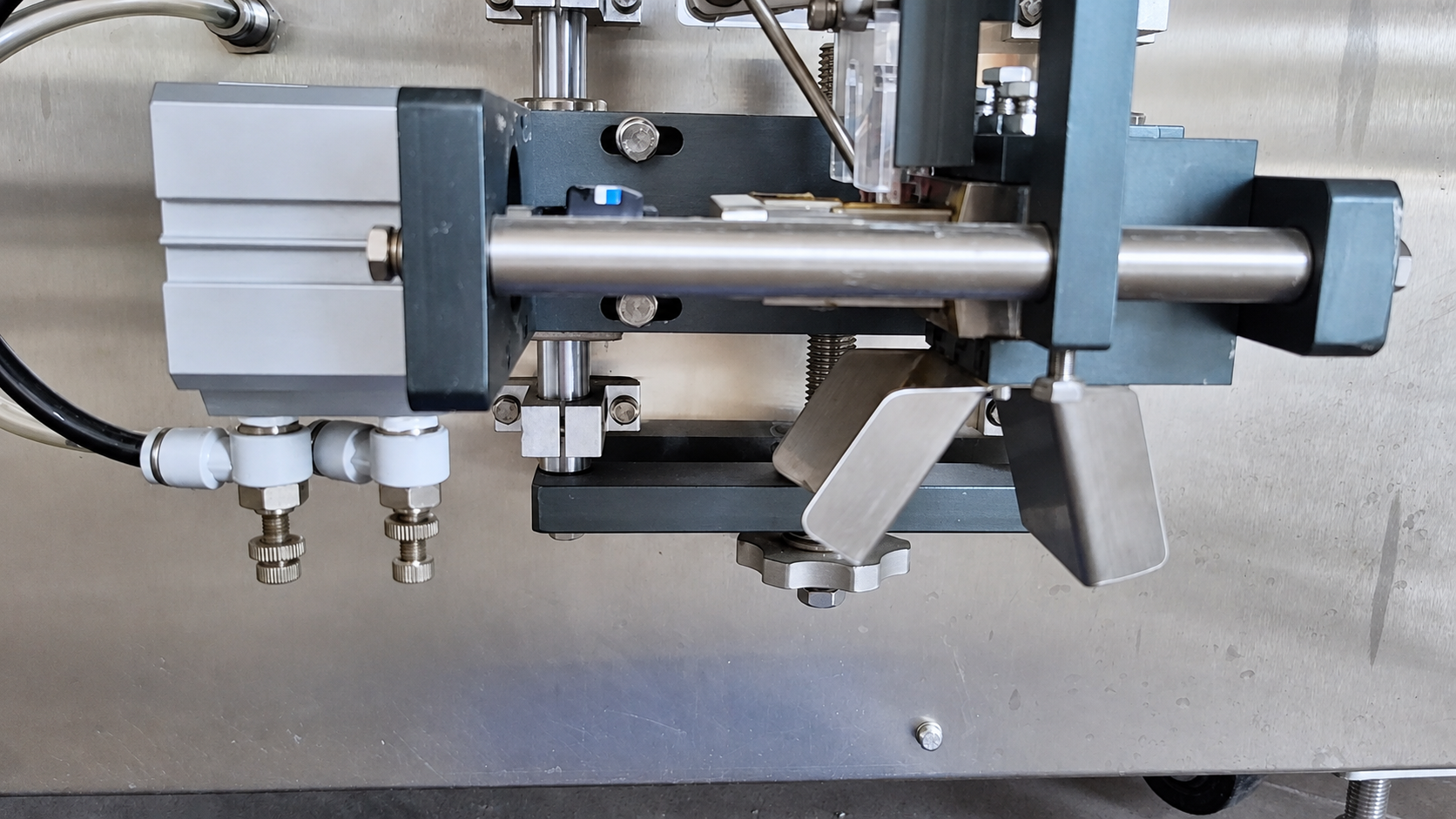

Actuator and guide hardware beneath the packaging station.

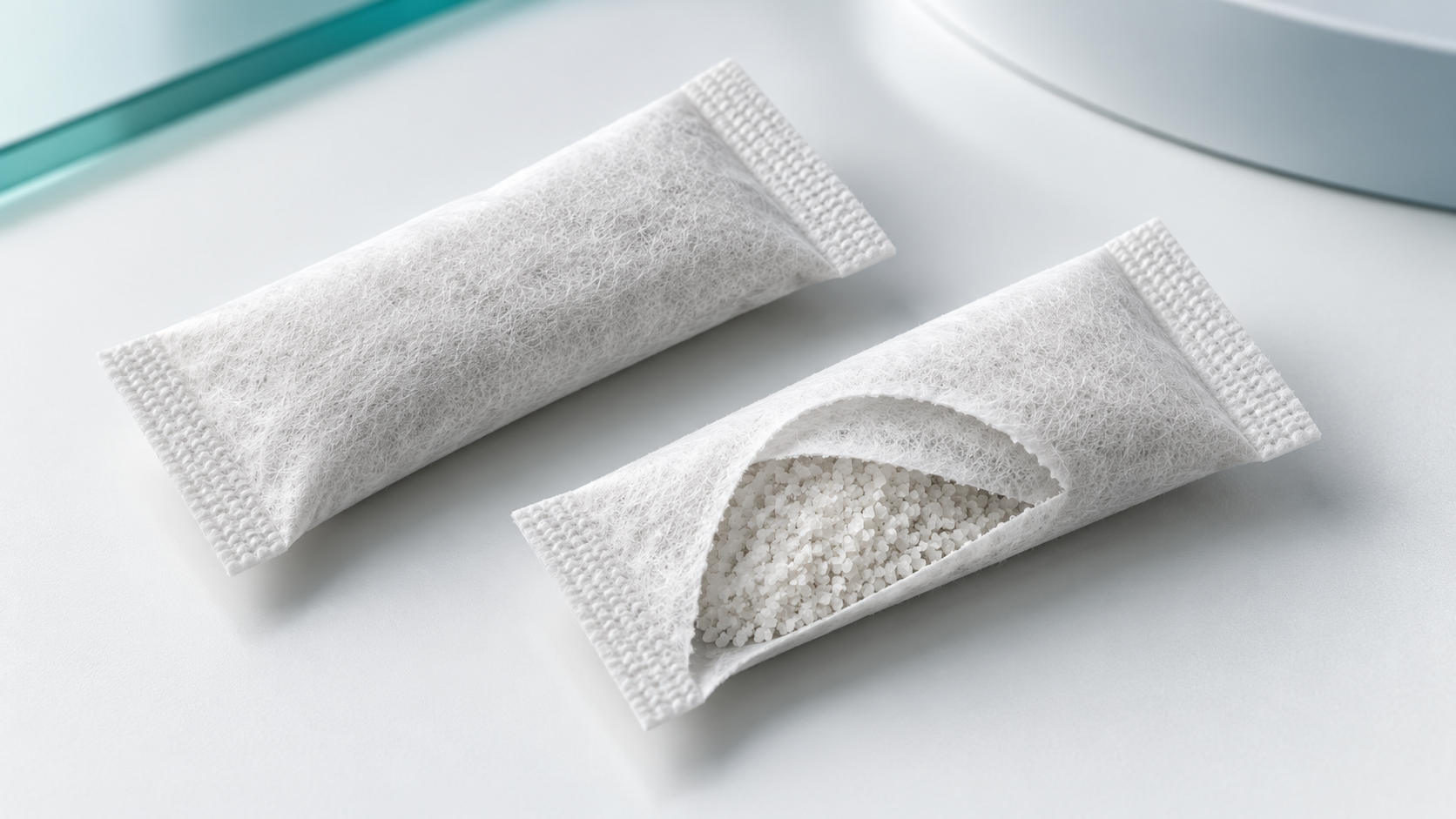

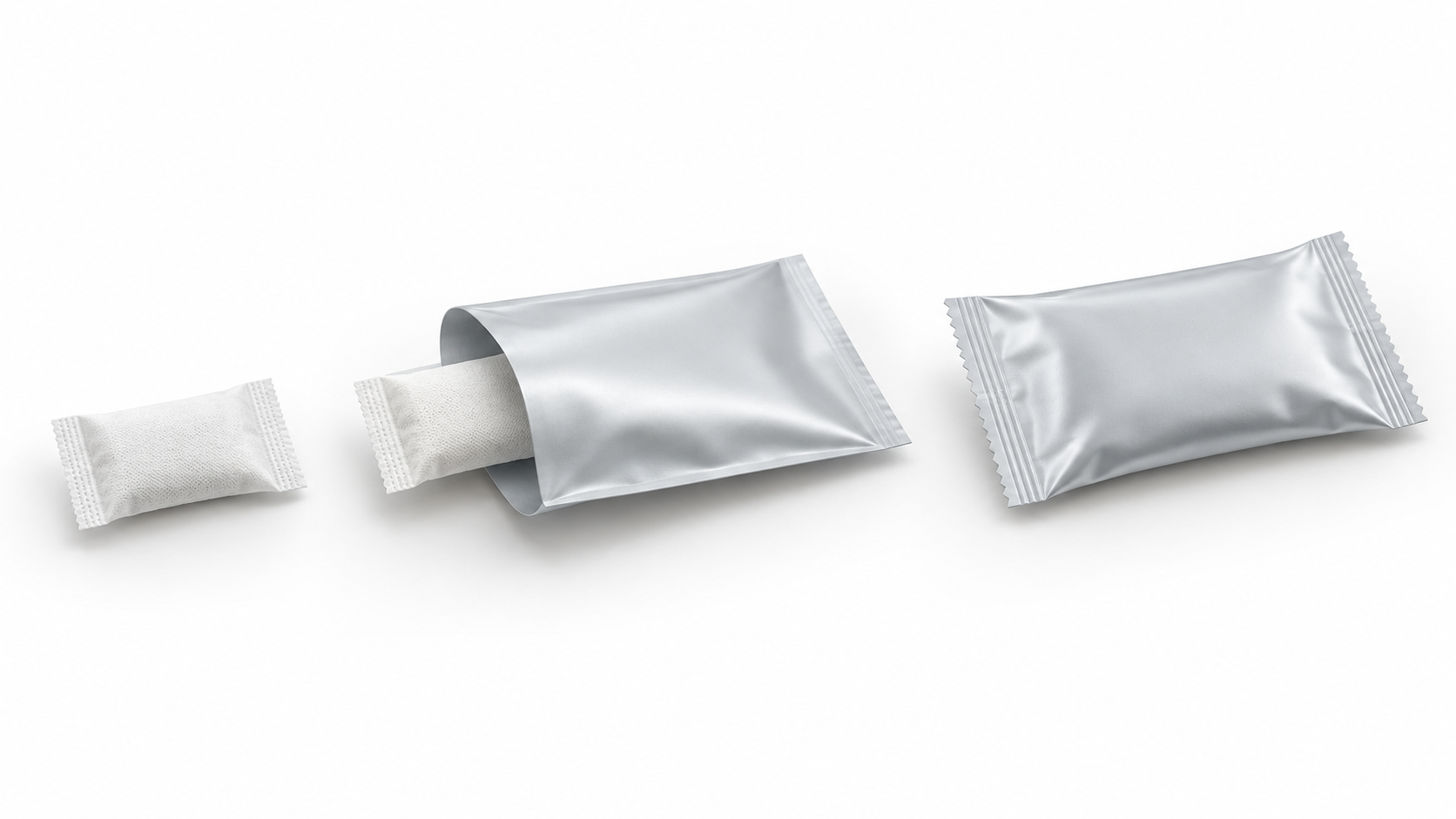

Inner Pouch & Individual Outer Wrap
Illustration
IllustrationHow It Works
- 1
Feed & dose
A small-dose system meters the prepared granules or powder for the inner pouch.
- 2
Feed the non-woven web
The non-woven roll unwinds through guide rollers into the inner-pouch forming section.
- 3
Wrap the outer pouch
The inner pouch transfers to the composite-film section for outer forming and sealing.
- 4
Discharge
Finished bag-in-bag packs leave the machine for the next handling stage.
Technical Specifications
| Fill weight | 0.4–0.7 g per pouch |
|---|---|
| Listed output | Up to 40 pouches/min, single lane |
| Metering accuracy | ±10% (material-dependent) |
| Pouch size | 30–50 mm length × 13 mm width |
| Film | 30 mm special non-woven film |
| Sealing | 4 mm longitudinal and 4 mm transverse seal |
| Cut | Rounded-corner cut |
| Power | AC 220 V · 50 Hz · 2 kW |
| Listed output | Up to 40 pouches/min |
|---|---|
| Pouch size | 30 mm width × 75 mm length |
| Film | 70 mm composite film |
| Sealing | 5 mm back seal and 7 mm transverse seal |
| Cut | Rounded-corner punching |
| Length control | Colour mark or touchscreen setting |
| Film pull | Servo-driven |
| Power | AC 220 V · 50 Hz · 2.5 kW |
The listed output is a configuration value and depends on material characteristics and operating speed. Confirm final operating values with your material and packaging specification.
Configuration & Options
- Dry or moist material; the listed filling system covers 8–40% material moisture.
- Optional modules include nitrogen flushing, date coding, servo auger filling, moisture control, vision inspection and dust extraction.
- The two power values describe separate units; a connected-load figure depends on the final arrangement.
