Experimental Nicotine Pouch Sample Machine
A compact configuration for pouch samples, material testing and format development.
- Cutting speed
- 20–40 cuts/min
- Fill weight
- 0.4–0.6 g
ApplicationFor laboratory work, customer samples, formulation trials and early pouch-format validation at a listed 20–40 cuts per minute.
WhatsApp · +86 186 8875 0201
sales@torvekapack.com
Product Overview
This experimental format gives product teams a smaller platform for checking material behaviour, fill weight, non-woven film and seal quality before moving to a production machine. Dry and moist granules use different metering arrangements, while the sealing section can be configured for heat sealing or ultrasonic sealing.
Machine Details

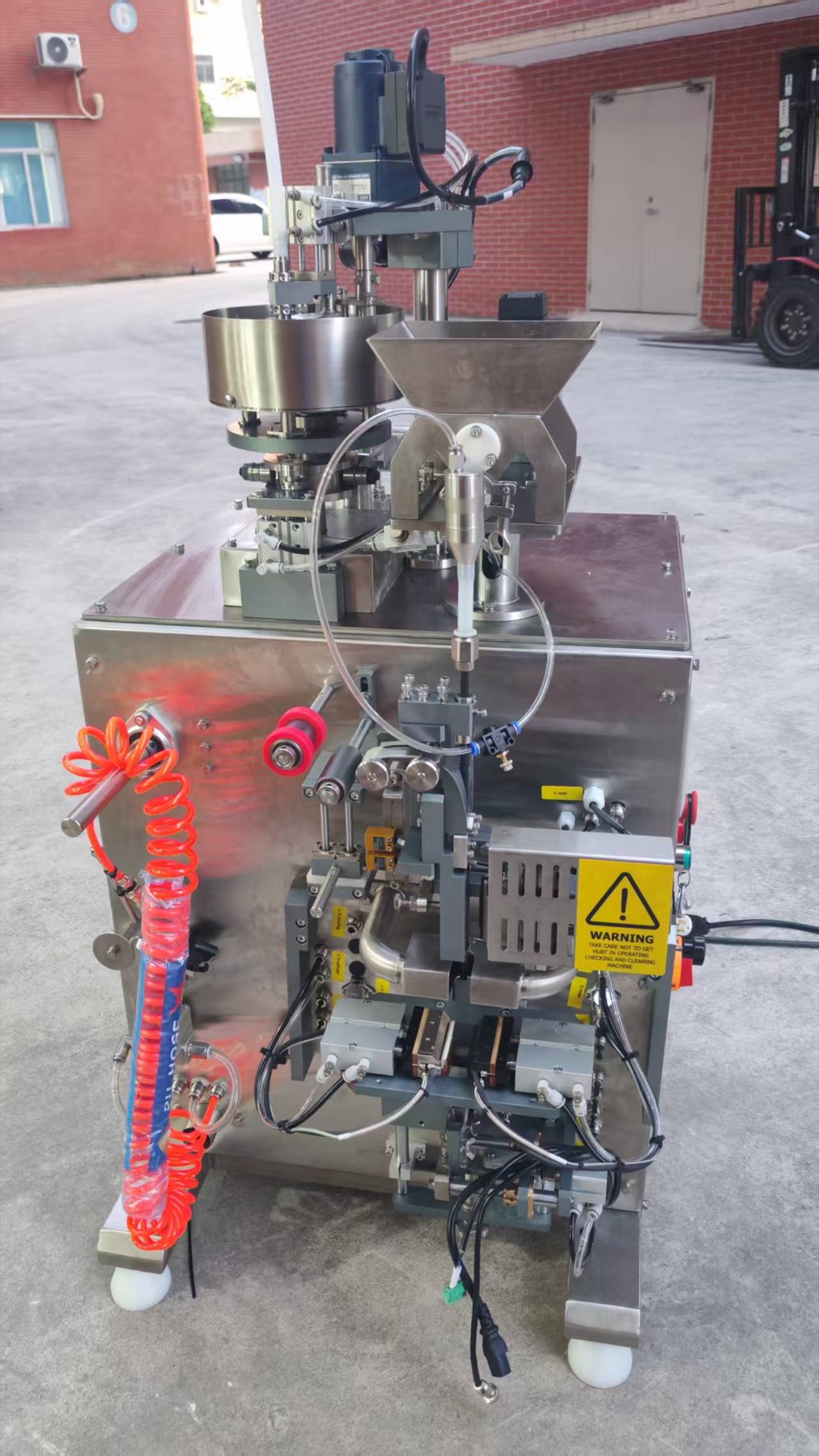

The compact upper section supports the selected dry- or moist-material metering arrangement.

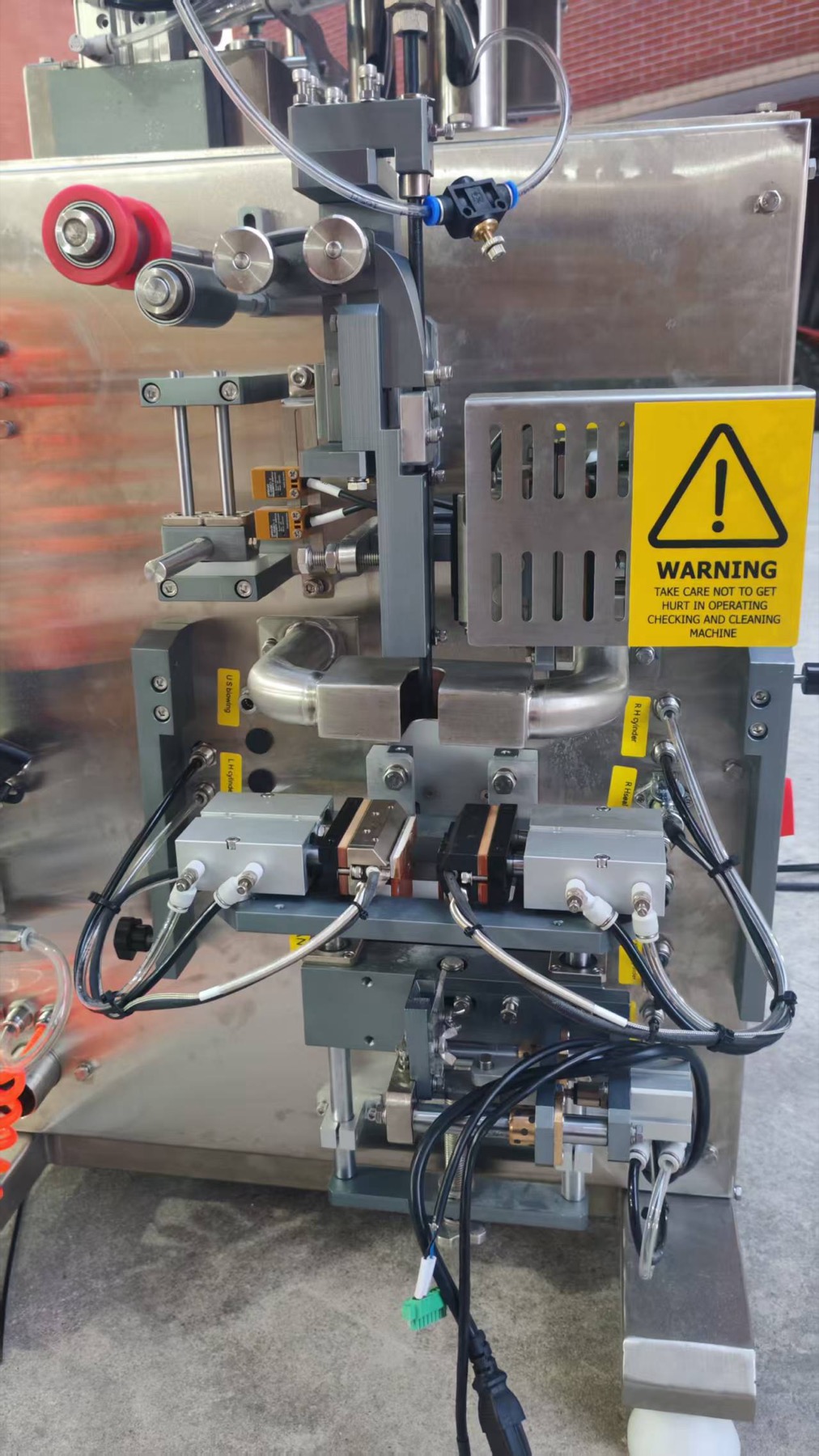

Guide rollers, forming hardware and sealing components in the single-row working area.
How It Works
- 1
Load material
Prepared dry or moist granules are supplied to the selected compact metering unit.
- 2
Feed non-woven film
A narrow film web runs through the guide rollers into the forming section.
- 3
Meter, form & seal
The measured fill enters the formed pouch before the selected heat-seal or ultrasonic operation.
- 4
Cut & collect
Finished sample pouches are cut and collected for inspection or testing.
Technical Specifications
| Available sealing | Heat-seal or ultrasonic, selected by project |
|---|---|
| Applicable material | Dry or moist granules |
| Metering | Dry: horizontal screw · moist: rotary measuring unit |
| Material moisture | 3–10% dry · 25–40% moist |
| Fill range | 0.4–0.6 g per pouch |
| Listed speed | 20–40 cuts/min |
| Film web options | 30 / 32 / 34 mm |
| Pouch width options | 13 / 14 / 15 mm |
| Vertical seal | 4 mm; surface finish depends on configuration |
| Horizontal seal | 4 mm heat seal or 1 mm ultrasonic |
| Air | 0.6–0.8 MPa; listed consumption 0.3 m³/min |
| Power | AC 220 V · 50 Hz · 3 kW |
Output, dosing and seal quality depend on the selected material, film and sealing configuration. Confirm final operating values with your material and packaging specification.
Configuration & Options
- Choose heat sealing for heat-sealable non-woven film, or ultrasonic sealing when that seal route is required.
- Metering hardware is selected for the actual material condition; a sample test is required before final configuration.
- Optional items listed for the product family include cutter variants, embossed seals, vibration feeding and pouch-clamp or inspection functions.
