Four-Lane High-Moisture Nicotine Pouch Packing Machine
Four parallel heat-sealing lanes for high-moisture nicotine pouch production.
- Pouching lanes
- 4 lanes
- Speed per lane
- 30–45 pouches/min
ApplicationFor projects that have moved beyond a single lane and need parallel pouch production while keeping the pouching stage within one coordinated machine.
WhatsApp · +86 186 8875 0201
sales@torvekapack.com
Product Overview
The M180L4-SYB arranges four pouching lanes in one unit. Prepared material is distributed to the measuring-cup backflow metering system, then each lane forms, fills, seals and cuts pouches in parallel. The published configuration addresses moist granule blends and gives buyers a per-lane output figure rather than an assumed line-wide guarantee.
Machine Details

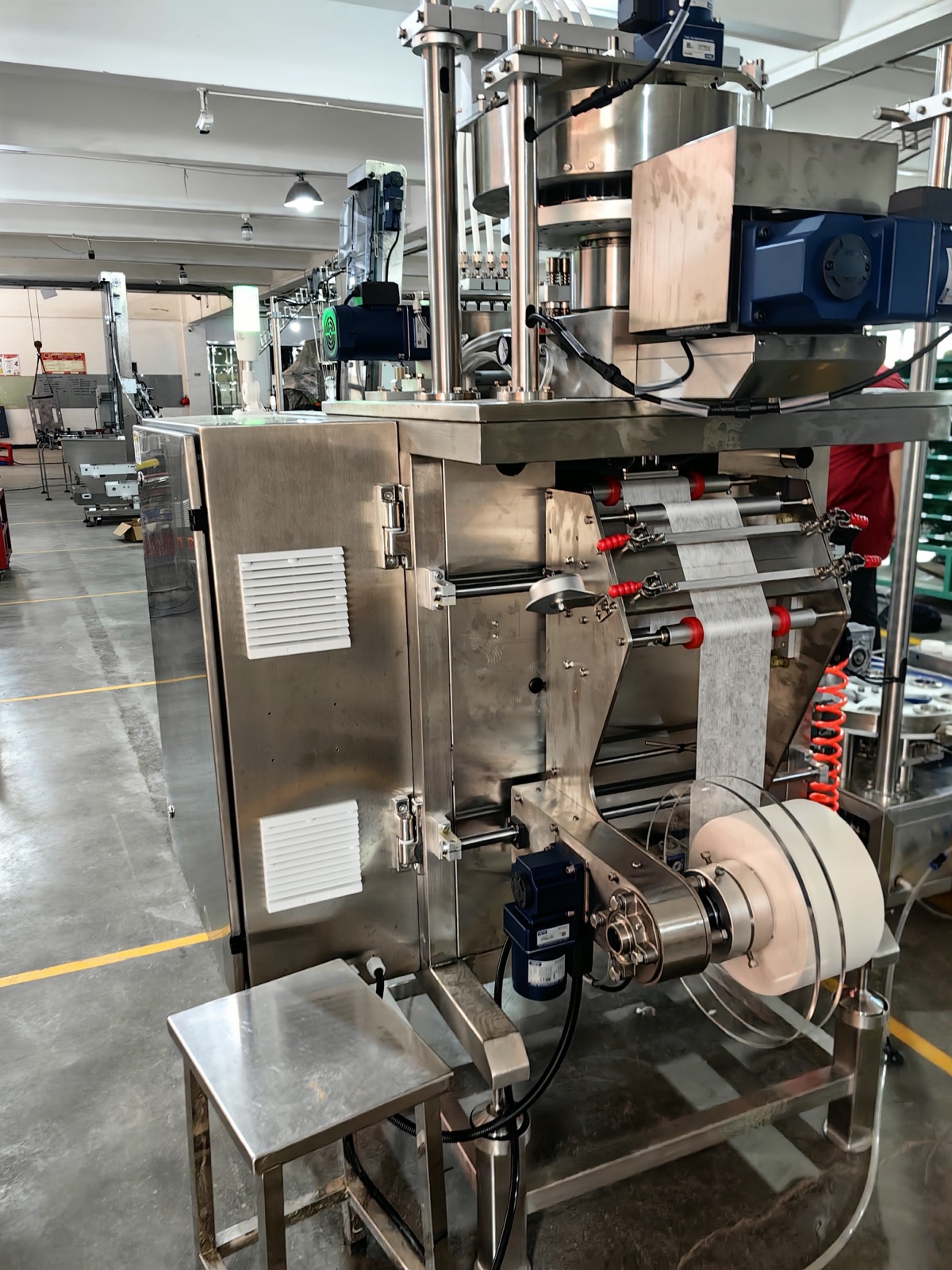

Guide rollers direct the material toward the forming section.
The roll-mounted web supply on the side of the machine.
How It Works
- 1
Prepare material
The blend is prepared for distribution across four lanes.
- 2
Meter in parallel
Measuring-cup backflow units dose material to the pouching lanes.
- 3
Form & heat-seal
Each lane forms, fills and seals its pouches.
- 4
Cut & discharge
Pouches are cut and leave the unit for downstream handling.
Technical Specifications
| Lane count | 4 |
|---|---|
| Listed output | 30–45 pouches/min per lane |
| Filling system | Measuring-cup backflow metering |
| Metering accuracy | ±10% (material-dependent) |
| Material moisture | 10–45% |
| Sealing | 4 mm longitudinal and 5 mm transverse seal |
| Control | PLC with 7-inch touchscreen |
| Supply option | 220 V / 380 V configuration |
| Listed unit envelope | 1,200 × 800 × 1,800 mm |
Per-lane performance and metering accuracy vary with material and operating conditions. Confirm final operating values with your material and packaging specification.
Configuration & Options
- The 30–45 figure is stated per lane; actual output depends on material and setup.
- Pouch width, texture and sealing arrangement may require a selected-build specification.
- Confirm the final electrical configuration and auxiliary requirements for the intended installation.
